Product Description
- Feature:

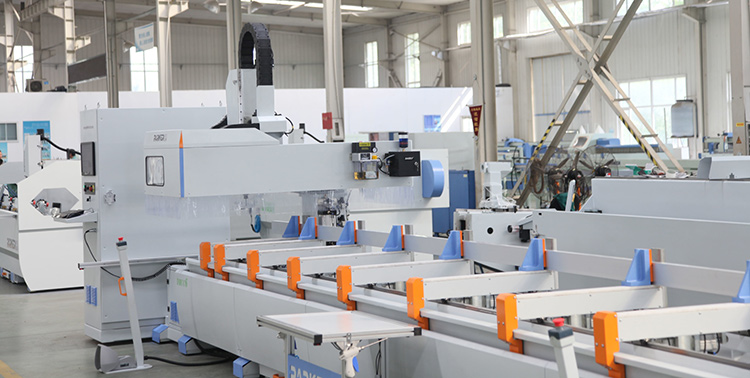

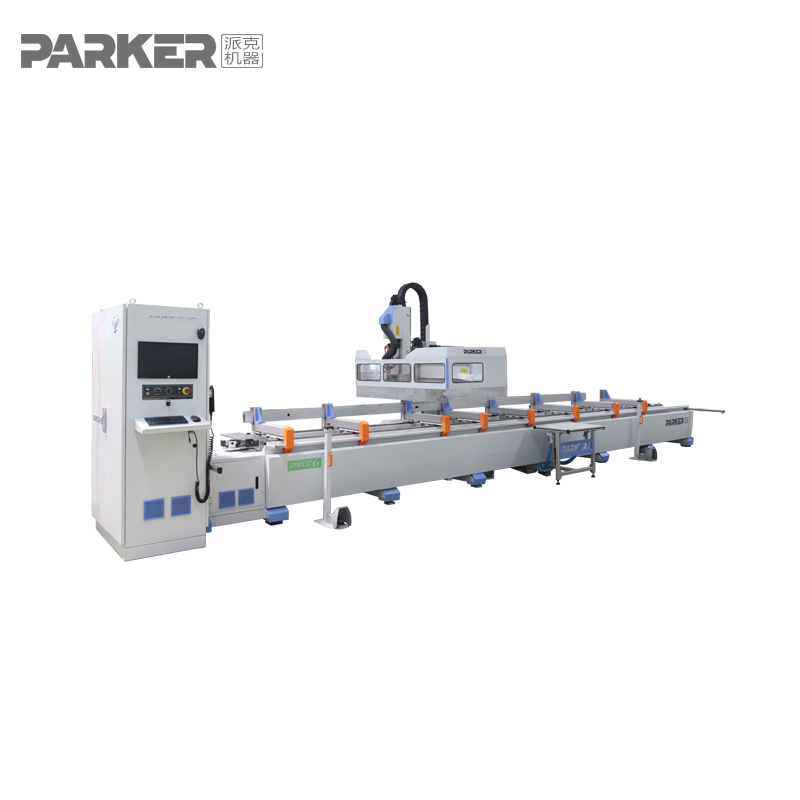

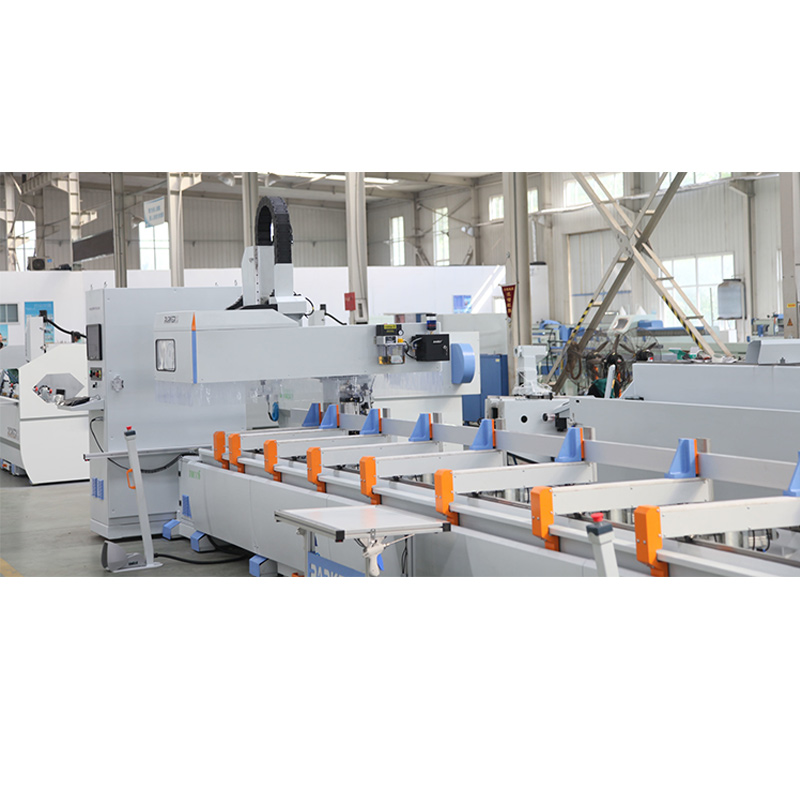

- The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.
- It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°
- It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.
- It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.
- Equipped Six cutters positions, the cutter can change quickly and automatically .
- The semi-closed guard improved security greatly.
- Clamping device position can be optimized and put to right position automatically and freely.
-
- TECHNICAL DATA.
- STROKE
- （Stroke for X axis） 7600mm
- （Stroke for Y axis） 870mm
- （Stroke for Z axis） 610mm
- SPINDLE
- （Spindle Speed） 18000
- TOOLS
- （Capacity Of Tools Magazine） 6
- （Tool Change Time） 2.8s
- MOVING SPEED
- （X Axis Moving Speed） 0~90m/min
- （Y Axis Moving Speed） 0~80m/min
- （Z Axis Moving Speed） 0~70m/min
- （X/Y/Z Feeding Speed） 0~2000mm/min
- POWER OF MOTOR
- （Spindle Driven Motor） 5.5kw
- （X/Y/Z/A Driven Motor） 1.8kw、0.85kw、0.85kw、0.75kw
- LUBRICATING SYSTEM
- （Lubricating System） Bijur
- （Cooling System） SAGELY
- （Position Precision Of X Axis） ±0.05mm
- （Position Precision Of Y /Z Axis） ±0.02mm
- （Repeating Position） ±0.02mm
- （Power Supply） 380V/50Hz
- （Power） 12kw
- （Air Pressure） 0.5-0.8Mpa
- （Weight） 4.7t
- （Area） 10100×2300×2600mm
- MAIN COMPONENT CONFIGURATION
-
