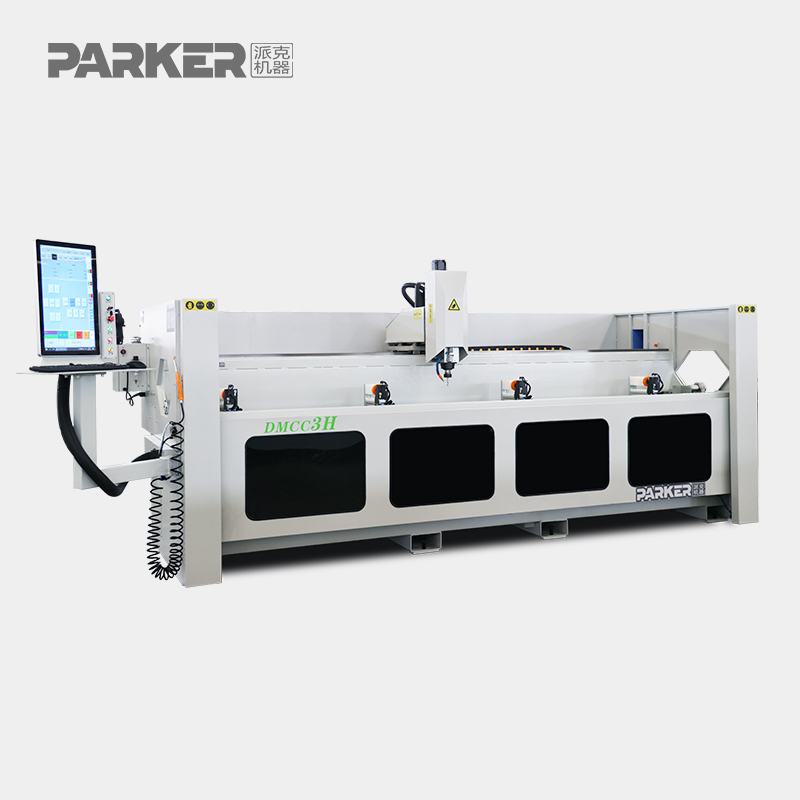

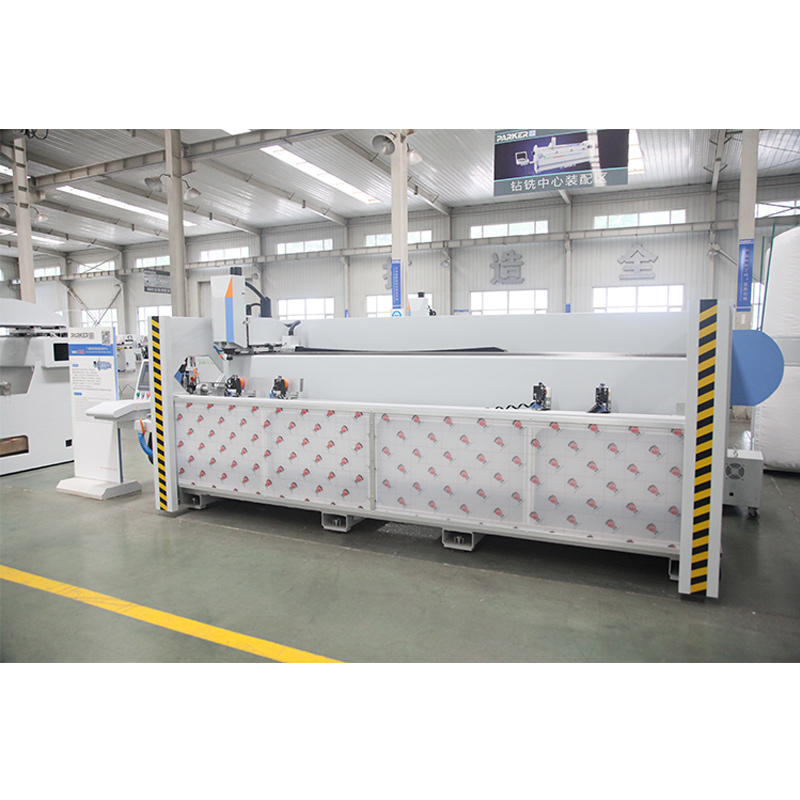

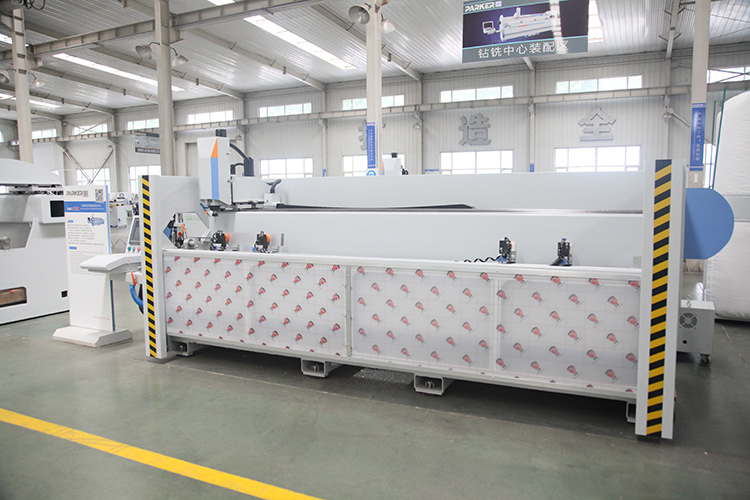

CNC Drilling machining center

Features:

• The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
• It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.

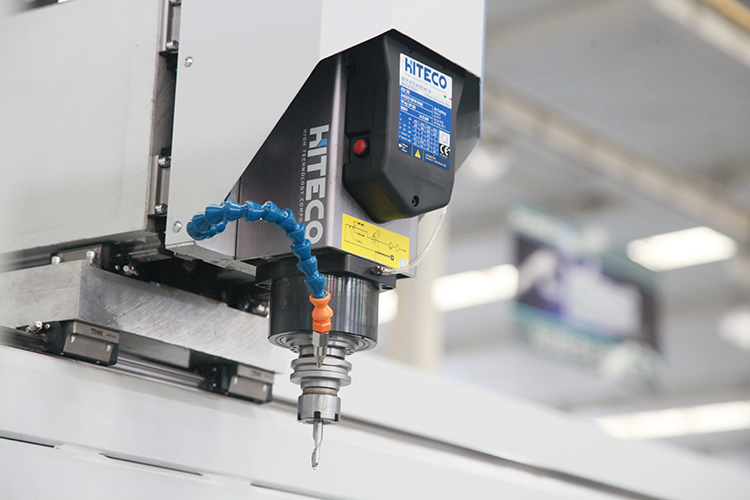

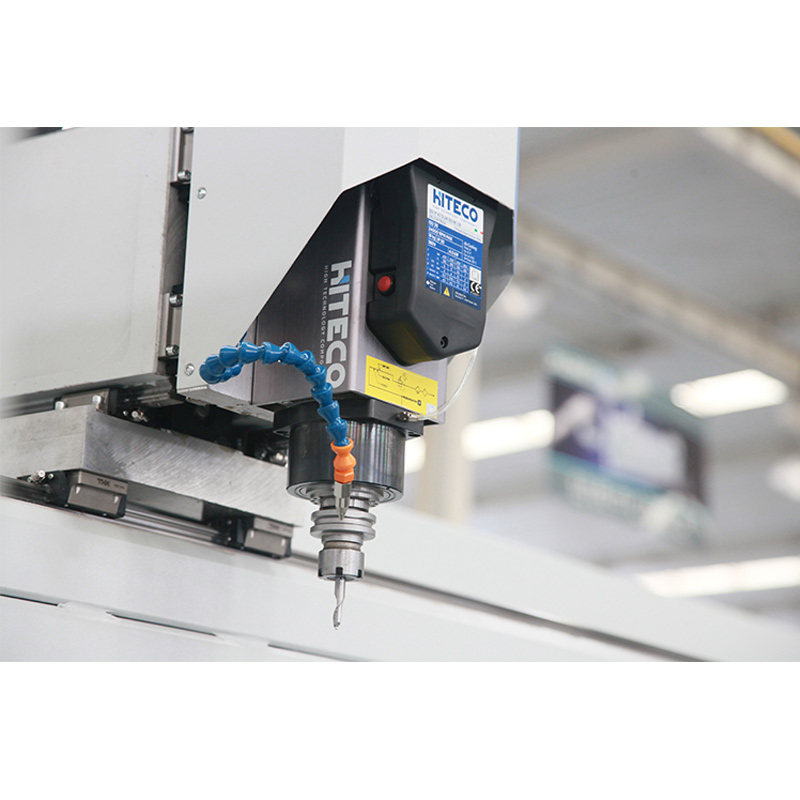

• It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
• It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.
• The rotary workbench can change the position among -90°、0° and +90° arbitrarily, one time clamping can finish milling for three sides.
• It adopts PA control system from Germany, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient
• .

Parameter:

    X axis Stroke: 3200mm

    Y axis Stroke: 300mm

    Z axis Stroke: 200mm

    X axis Speed: 0～140m/min

    Y axis Speed: 0～75m/min

    Z axis Speed: 0～75m/min

    Spindle speed and Power: 18000rpm/3kw

    Work table position: -90°、0°、+90°

    Cutter size: ER25-Ф8

    Air Pressure: 0.5～0.8MPa

    Voltage: 380V/50Hz

    Power: 6kw

    Cutter cooling: Auto spraying and cooling

    Processing dimension: （W×H×L）：160×160×3200mm

    Processing character: Can process three sides of profile per time loading profile

   Dimension（L×W×H): 4525×1630×1900mm
