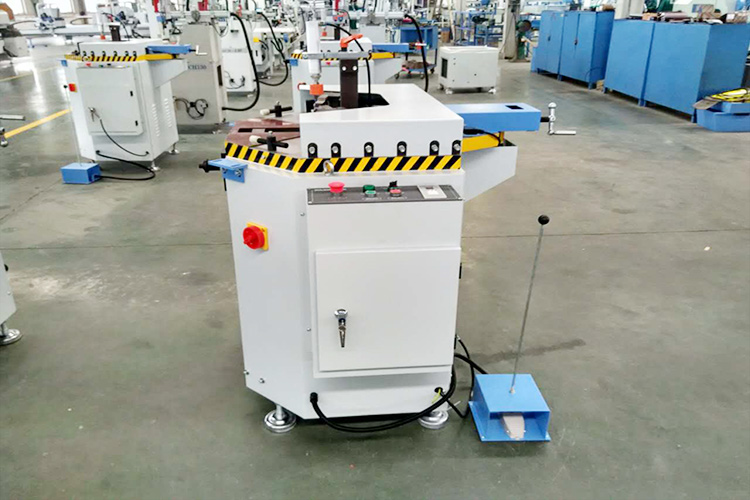

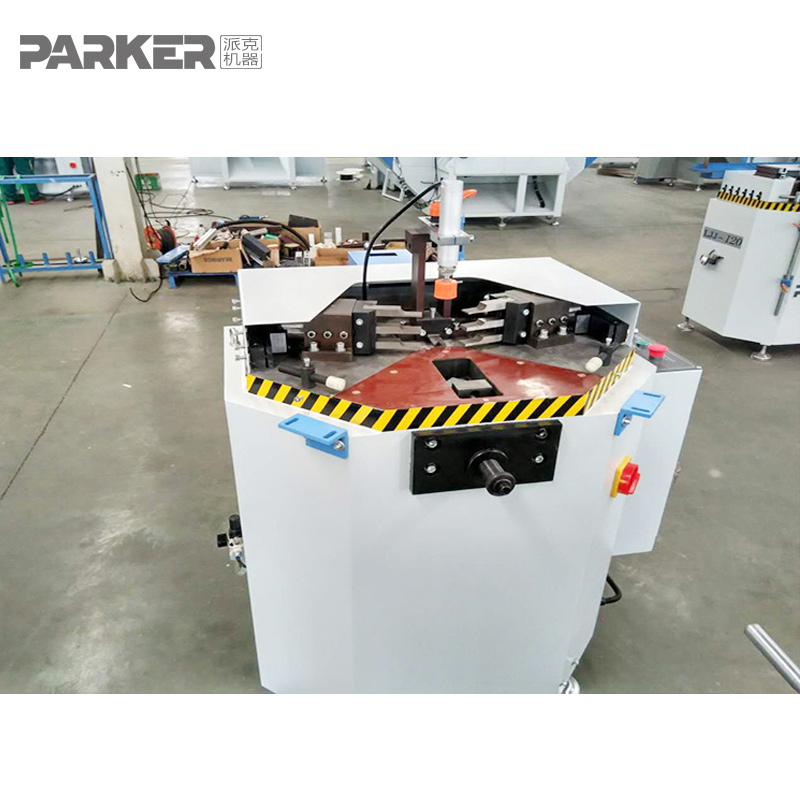

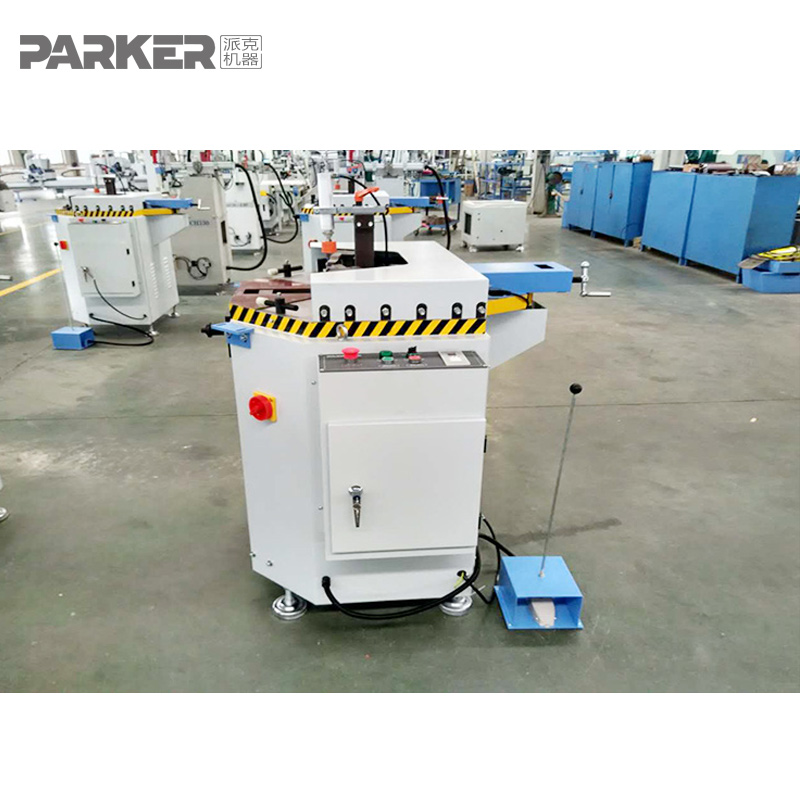

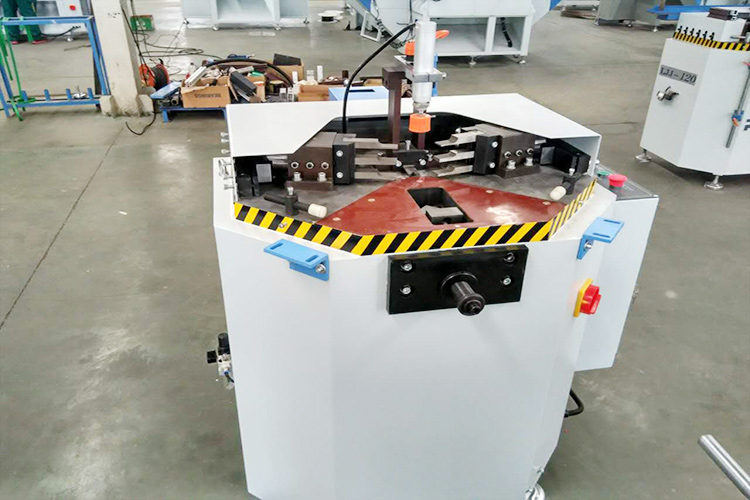

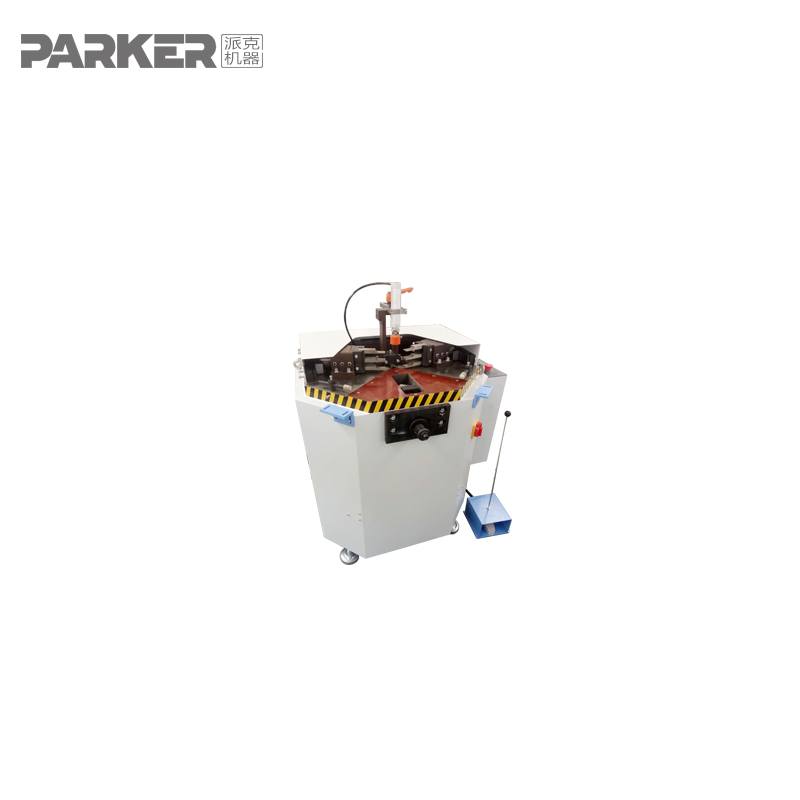

Hydraulic corner crimping machine for aluminum doors and windows

Features:

• The newly designed synchronous punching and riveting technology greatly improves the qualified rate of finished products.
• The power is controlled by the hydraulic system to make the work stable and reliable
• The left and right punches are fed rigidly and synchronously to avoid the useless deformation of the corner assembly process and make the window corner connection more firm.
• Synchronous feeding mechanism makes machine adjustment easy
• The distance between the upper and lower corner knives can be adjusted by the thread, which is more convenient for tool setting.
• Can be equipped with single and multi-point corner knives to make the corners of the thermally insulated aluminum doors and windows more reliable
• Internal positioning lift
•

Parameters:

Power 380V 2.2KW

Rated oil pressure 15Mpa

Gas consumption 2L/min

Angle cylinder motion stroke 0～50mm

Splicing gap ≦0.15mm

Air pressure 0.5～0.8Mpa

Fuel tank capacity 20L

Profile Height 120mm

Dimension 1000mm×1500mm×1250mm

Weight 350KG
