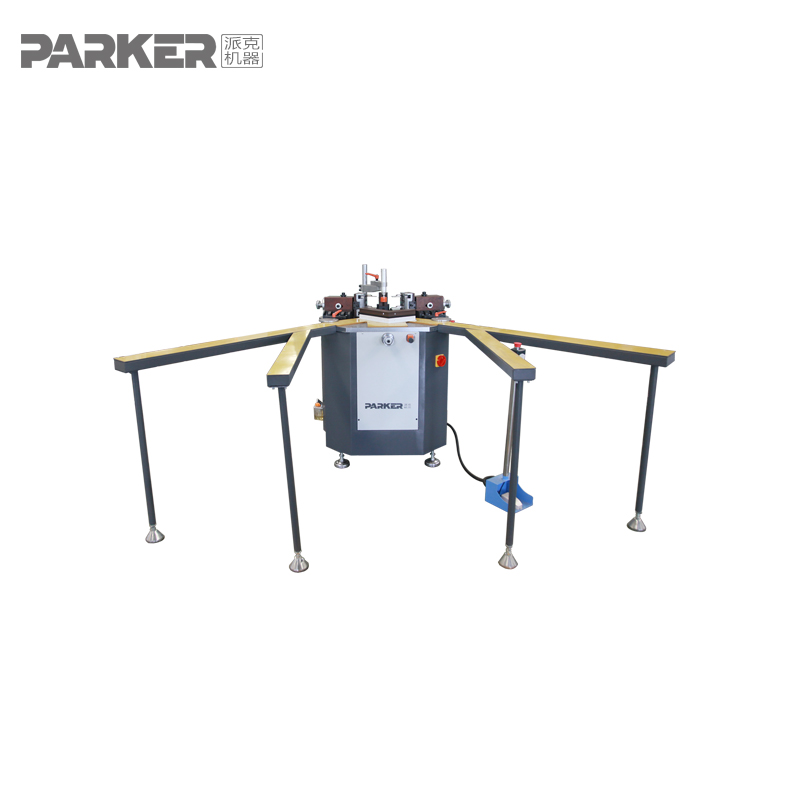

Hydraulic corner crimping machine for aluminum doors and windows

Features:

• The newly designed synchronous punching riveting process greatly improves the qualified rate of finished products
• The power is controlled by the hydraulic system to make the work stable and reliable.
• The left and right punches are fed rigidly and synchronously to avoid the useless deformation of the corner assembly process and make the window corner connection more firm.
• Synchronous feeding mechanism makes machine adjustment easy
• Thread adjusts the distance between upper and lower corner knives, making tool setting more convenient
• Can be equipped with single and multi- point corner knives to make the corners of the thermally insulated aluminum doors and windows more reliable
•

Parameters:

Power 380V 2.2KW

hydraulic system pressure 40Mpa

Gas consumption 2L/min

Angle cylinder motion stroke 0～50mm

Splicing gap ≦0.15mm

Air pressure 0.5～0.8Mpa

Fuel tank capacity 20L

Profile Height ≤160mm

Dimension 1096mm×1800mm×1300mm

Weight 480KG
