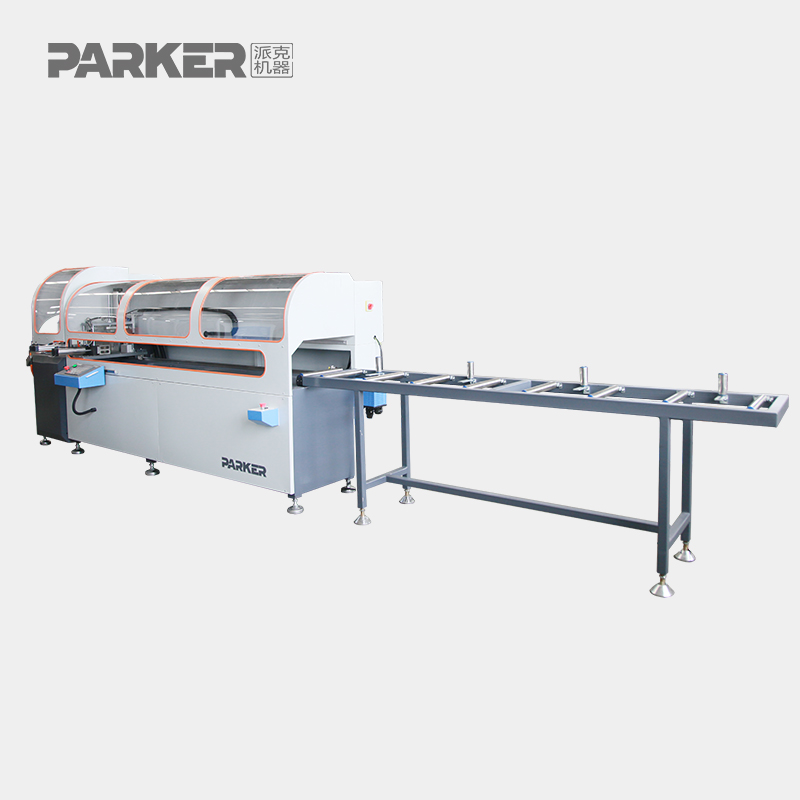

Heavy duty Aluminium CNC control Automatic Cutting Saw

Features:

• The machine has large cutting range, used for aluminum profile and curtain wall profile cutting.
• It has hi-efficiency and perfect safe guards, It is suitable for large scale production.
• Adopted CNC technique and high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working, can achieve varioys profile auto cutting.
• Its’ body adopts advanced steel structure design, through aging treatment, ensuring goos body rigidity,easily seformed.
• The imported special carbide blade with high quality makes the accurate of cutting.
• High precision spindle can ensure the blade running smoothly, effectively improved the cutting quality of material surface.
• Feeding system of blade adopts the imported air-hydraulic cylinder realizes smooth feeding and steady moving.

Parameters:

    Name Heavy duty Aluminium CNC control Automatic Cutting Saw

    Model LJMJ-CNC-500C

    Power 380V/50HZ/4.5Kw

    Rotary speed 2800rpm

    Blade specification Φ500xΦ30x4.4mm, Z=120

    Air pressure 0.5-0.8Mpa

    Air consumption 200L/min

    Cutting angle :90°

    Processing accuracy ±0.1mm

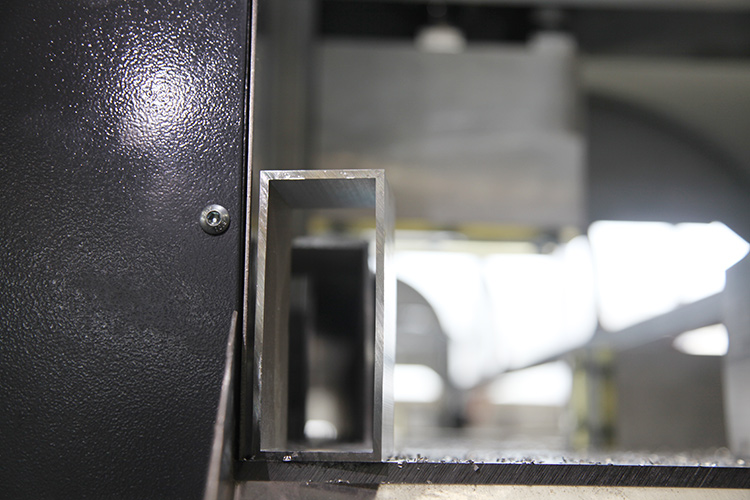

    Cutting width/height Max300mm/Max150mm

    Overall dimension 2500x1300x1700mm

    Weight About 800kg
